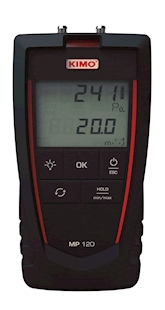

The Kimo MP120 is an entry level manometer which has a pressure range of ± 1000 Pa and is suitable for use with Pitot tubes for measuring air velocity up to 40 m/s (Pitot tubes are supplied as an extra). Supplied with 2 x 1 m of silicone tube (black and white), a stainless steel pressure tube 6 mm diameter x 100 mm long, battery, user manual, manufacturers calibration certificate and transport case.
Instrument functions : Pressure, differential pressure, manual auto calibration, pressure units choice, hold function, min/max. values.
Features
For a range of Pitot tubes please see separate section within the website.
Technical
Pressure range ± 1000 Pa
Pressure accuracy ± 2 % of reading, ± 2 Pa
Pressure resolution 1 Pa
Velocity range 2 to 40 m/s
Velocity accuracy 2 to 5 m/s ± 0.7 m/s, 5 to 40 m/s 0.5 % of reading, ± 0.3 m/s
Velocity resolution 0.1 m/s
