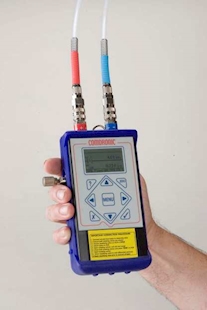

The AC6 electronic manometer from Comdronic designed specifically to measure hydraulic differential pressure across balancing valves and orifice plates. Available in two pressure ranges the AC6 incorporates an easy to use menu system with a large “graphical” display. The AC6 uses state-of-the-art software and an extensive database of balancing valves to provide a direct reading of flow as well as differential pressure, percentage of design flow and the target flow.
Features
Simplicity
Unlike any other commissioning unit, the most commonly used functions - Flow and Pressure - are shown as the default screen from the display menu. This means that for general commissioning purposes the most valuable data is shown at the touch of a button - in large text.
The nine-button keypad allows simple navigation through a menu system which provides the option to select the most appropriate screen for the work being carried out. The 'Multi Display' has the ability to show more complex commissioning data and it can be set to the 'Flow / Pressure Display' if automatic balancing valves are being measured, or if a system of proportional balancing is being adopted. Alternatively, the 'Pressure Display' is the simplest option available and is designed for applications where the AC6 is being used as a simple manometer.
Sophistication
Accuracy of measurement is of course one of the most important elements of the function of commissioning units. The Comdronic AC6 gives differential pressure readings to an accuracy of ± 1 % of reading or ± 0.1 kPa whichever is the greater. A user-adjustable damping system further improves reading confidence on unstable systems.
Convenience
Designed to be as portable as possible, the compact and lightweight AC6 handset is easily operated in the hand or may be clipped to a lanyard. The complete Comdronic AC6 unit includes a handset in a protective rubber boot; a pair of connection tubes with integral isolation valves; two sets of Binder and Mechseal style adaptors; a screwdriver, a set of user instructions; quick start guide and calibration certificate. All in a rigid plastic carry case with profiled foam inserts for added protection during transportation between sites.
Technical
Effective operating time 20 hours (normal usage)
AC6-SP (Standard Pressure)
Measurement range 0.5 kPa to 200 kPa
Measurement accuracy - Differential pressure
Range 0.5-10 kPa Accuracy +/-0.1 kPa
Range 10-200 kPa Accuracy +/-1.0% reading
Hysteresis 0.2% span
Maximum allowable line static pressure 10 Bar
AC6-HP (High Pressure)
Measurement range 2.0 kPa to 600 kPa
Range 2-10 kPa Accuracy +/-0.1 kPa
Range 10-600 kPa Accuracy +/-1.0% reading
Hysteresis 0.2% span
Maximum allowable line static pressure 20 Bar
The Instrument Rental models come as standard with x2 straight 3.3 mm diameter Binder connectors, x2 angled 3.3 mm diameter Binder connectors, x2 straight Mechseal connectors and x2 angled Mechseal connectors. 2m of pressure connection tubes.
It should be noted that the angle pattern connectors are recommended for all 'difficult to access' measurement locations.
Wherever possible the manufacturer programmes into the instrument the Kv characteristics of most common valves in the market. Currently this is over 4,500 individual valve types, but some manufacturers such as TA Hydronics will not release data relating to some of their new products. If your application requires use in these instances please check with our technical team to confirm product suitability.
