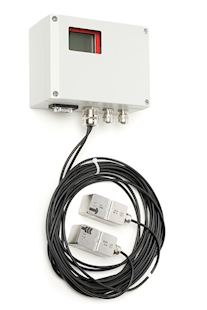

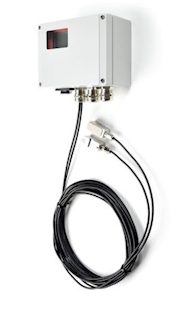

The KATflow 100 is a compact clamp-on ultrasonic flow transmitter with a robust and practical design for permanent installation and flow measurement on single pipes. The instrument offers a cost-effective option owing to its simplified specification and availability of a range of transducer types. The varied functionality and simple operation make it the perfect product for large projects and customer specific solutions.
The units electronics are housed in a robust wall or pipe mounted aluminium enclosure and can be powered by AC or DC power supplies. It is simple to use and offers the operator a wide range of input, output and communication interfaces such as RS 485, Modbus and the more traditional 4 - 20 mA and open-collector pulse.
Features
- Low cost of ownership
- Multiple input and output options available
- PT100 inputs for heat quantity (thermal energy) measurement
- Bi-directional measurement with totaliser function
- Innovative installation wizard for quick and intuitive programming
- Configuration can be changed to suit customer requirements
- Wall or pipe mounted
- Sturdy unit with LCD display and five-key keypad
- Robust IP 66 aluminium enclosure
- Weight 750 g
- Temperature range for sensors - 30 °C to + 80 °C (- 22 °F to + 176 °F)
- Pipe diameter range 10 mm to 3,000 mm
As a special solution the KATflow 100 can also be offered without local display with a hand-held programming device.
Technical
Please see the pdf product data sheet within the document section for full technical details.
