TSI / Airflow TA465-A

Contact Instrument Solutions

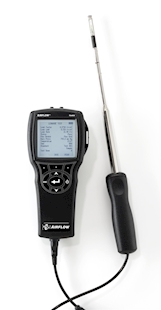

TSI TA465-A multi-function ventilation meter with model 966 articulated thermal anemometer probe, hard carrying case, batteries, USB cable, power supply, instruction manual, LogDat2 software, 2.5 m hose, static pressure tip, and calibration certificate

Overview

The TSI / Airflow TA465 series are portable, handheld, multi-function ventilation test instruments featuring a menu-driven user interface for easy operation. On-screen prompts and step-by-step instructions guide the user through instrument setup, operation, and field calibration. The TA465 also features an ergonomic, over-molded case design with probe holder and a keypad lockout to prevent tampering during unattended use. These instruments are available with or without a differential pressure sensor and are designed to work with a wide range of plug-in probes.

Features

Features and Benefits

  • Optional “smart” plug-in probes, including VOC, CO2, and rotating vane probes
  • Accommodates up to two Type K-alloy thermocouples
  • Large graphic display
  • Displays up to five measurements simultaneously
  • On-screen messages and instructions
  • Program for local languages
  • Intuitive menu structure allows for ease of use and setup
  • Multiple data logging formats
  • Bluetooth communications for transferring data or remote polling
  • Includes LogDat2 downloading software with USB cable

Non-Bluetooth versions

The TSI 465 range of instruments are available in non-Bluetooth varients for locations where the use of the Bluetooth comunications protocol is not alowed. You are still able to download stored data via the USB cable and software with the non-Bluetooth instruments. However, these instruments will no longer be able to be paired via Bluetooth to the 8934 wireless printer or to a Bluetooth-enabled computer.

If you require pricing on these models please contact the BSRIA Instrument Solutions technical sales team on 01344 459314 or instruments@bsria.co.uk

The part Numbers without Bluetooth are:

  • Ventilation meter TA465-NB
  • Ventilation meter TA465-A-NB
  • Ventilation meter TA465-X-NB
  • Ventilation meter TA465-P-NB

Technical

Optional probe types

  • Type 960 thermo anemometer straight probe - velocity and temperature
  • Type 962 thermo anemometer articulated probe - velocity and temperature
  • Type 964 thermo anemometer straight probe - velocity, temperature and humidity
  • Type 966 thermo anemometer articulated probe - velocity, temperature and humidity
  • Type 995 rotating vane 100 mm diameter probe - velocity and temperature
  • Type 980 IAQ probe - CO2, temperature and humidity
  • Type 982 IAQ probe - CO, CO2, temperature and humidity
  • Type 984 low concentration (ppb) - VOC and temperature
  • Type 985 high concentration (ppm) - VOC and temperature
  • Type 986 low concentration (ppb) - VOC, temperature, humidity and CO2
  • Type 987 high concentration (ppm) - VOC, temperature, humidity and CO2

Instrument Solutions Hire Kits include the TA465-P handheld unit; this incorporates a differential pressure module allowing the gauge to be used as a micromanometer and has a logging function. The data can be downloaded using the supplied software thereafter. Tubing and static probe supplied in the kit.

TSI / Airflow TA465
TSI / Airflow TA465
TSI TA465 multi-function ventilation meter with model 964 straight thermal anemometer probe, hard carrying case, batteries, USB cable, power supply, instruction manual, LogDat2 software, 2.5 m hose, static pressure tip, and calibration certificate
TSI / Airflow TA465-X BSRIA Instrument Solutions
TSI / Airflow TA465-X BSRIA Instrument Solutions
TSI TA465-X multi-function ventilation meter (no plug-in probes, no differential pressure sensor), hard carrying case, batteries, USB cable, power supply, instruction manual, LogDat2 software, and calibration certificate
TSI / Airflow TA465-P
TSI / Airflow TA465-P
TSI TA465-P multi-function ventilation meter with differential pressure sensor, no plug in probes, hard carrying case, batteries, USB cable, power supply, instruction manual, LogDat2 software, 2.5 m hose, static pressure tip, and calibration certificate

Support documents

  • Download
  • Category
  • File type
  • Download
Download
TSI / Airflow TA465 series data sheet.pdf TSI / Airflow TA465 series data sheet
Category
Technical document
File type
Adobe Acrobat
Download (330 KB)
Download
TSI / Airflow TA465 series user manual.pdf.pdf TSI / Airflow TA465 series user manual.pdf
Category
Technical document
File type
Adobe Acrobat
Download (943 KB)
Download
TSI LogDat2 software user manual.pdf TSI LogDat2 software user manual
Category
Technical document
File type
Adobe Acrobat
Download (746 KB)

Common customer questions & answers

QQuestion How do I change the measuring units on the TA465 (i.e. kPa to Pa) ?
AAnswer From the main screen, press Menu, then scroll down to Settings and enter. Then scroll down to Select Units and enter. You can now change the display units for certain parameters - enter onto the parameter and select the unit from the list of options.
QQuestion Can the TA465 display all parameters simultaneously?
AAnswer The TA465 can display 1 primary and 4 secondary parameters simultaneously but will log all parameters that have been selected in the display menu.
QQuestion How many data points are there on the TA465-A unit?
AAnswer This instrument is able to log 26,500 samples to the internal memory. Logging intervals are selectable from 1s to 1hr.
QQuestion Can the TA465 be used to monitor duct velocity using a Pitot tube?
AAnswer Yes. This can be achieved by connecting a Pitot tube to the pressure ports and selecting Pitot velocity from the display menu.
QQuestion What is the diameter of the 966 probe tip on the TSI TA465-A instrument?
AAnswer The probe tip is 8mm diameter. The probe is telescopic and the diameter increases to around 13mm at the lower end when fully extended.
