What is the size of the standard carry case?

The size of the standard carry case for the DBM 620 instrument is 500 mm H x 320 mm D x 500 mm W

What is the range of the Bluetooth signal?

It depends on the smartphone or tablet being used but typically 30 m is the maximum range.

Will the hood put a back pressure on the system being tested and this influence the results?

The instrumentation can create a small back pressure on some systems, but as they are often used as proportional balancing tools this effect is the same on each part of the ventilation system being checked. Hence the overall balancing ratio's remain constant so any system back pressue has a negligible effect on the results.

Sauermann DBM 620 | Balometer bundle | BSRIA Instrument Solutions

Available to purchase is the Sauermann DBM 620 balometer bundle complete with 610 mm x 610 mm, 720 mm x 720 mm, 720 mm x 1320 mm, 420 mm x 1520 mm & 1020 mm x 1020 mm hoods with frames case (each hood comes with a soft zip case), instruction manuals, and calibration certificate. Note: The equipment requires a small type phone/ mobile device with the Sauermann SmartKap App installed to be used as an instrument display if data is not collected remotely via the Samsung Galaxy Tab supplied.

- Model: Sauermann DBM 620 balometer bundle Manufacturer code: 26447 DBM620 C
- - Price: £3,617.90
- - Sauermann DBM 620 balometer bundle £3,617.90
- Calibration: BSRIA ISO (traceable)
- - Price: £160.00

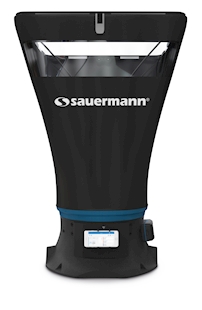

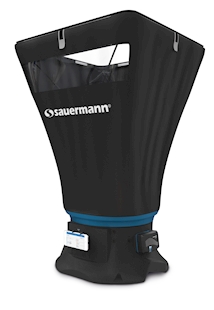

The Sauermann DBM 620 balometer has been designed for the measurement of air volume from ceiling diffusers and grilles. Supplied in the bundle configuration with the 610 x 610 mm, 720 mm x 720 mm, 720 mm x 1320 mm, 420 mm x 1520 mm & 1020 mm x 1020 mm hoods with collapsible space saving frames along with a compact storage case. The DBM 620 measuring unit communicates with smartphone or tablet devices via Bluetooth using the free easy to use SmartKap mobile App available from Google Play or Apple App store for the display and reporting of measurement data

Features

Measuring range 35 to 4250 m³h.
Supplied with a Samsung Galaxy Tab A 10.1 preloaded with SmartKap App - designed for remote data collection when the equipment is installed on the tripod assembly.
Simultaneous display of 4 parameters. Selectable from airflow, air velocity, relative humidity, barometric pressure, temperature and differential pressure.
Selectable units of measure: Velocity - m/s, fpm, km/h, mph, Volume - m³/h, l/s, cfm, Pressure - Pa, mmH₂O, mmHG, inWg, Atmospheric pressure, hPa and mbar.
HOLD function
ACR (Air Change Rate) function
Automatic averaging or point-by-point averaging
Removable measuring (pressure) unit for stand alone use as an autonomous micromanometer of with the measurement grid.
Tripod with castors assembly for use with DBM620 and measurement grid.

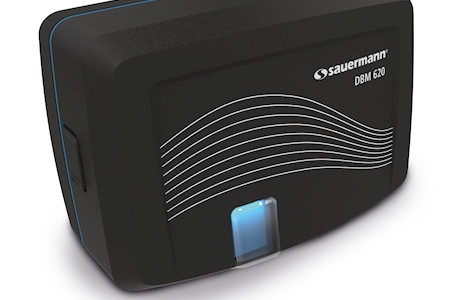

Sauermann DBM 620 pressure meter

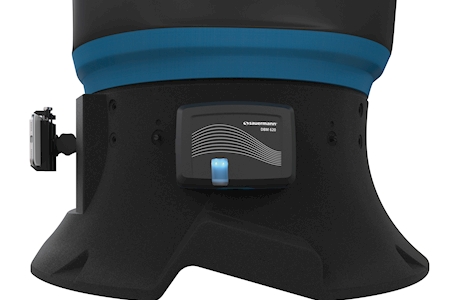

Sauermann DBM 620 meter on frame assembly

Technical

Airflow range 35 to 4250 m³/h

Airflow accuracy ± 3 % of the measured value ± 35 m³/h

Airflow resolution 1 m³/h

Pressure range ± 0.2 % of reading ± 2 Pa

Pressure accuracy ± 2500 Pa

Pressure resolution 0.001 to 0.1 Pa

Atmospheric pressure range 700 to 1100 hPa

Atmospheric pressure accuracy ± 3 hPa

Atmospheric pressure resolution 1 hPa

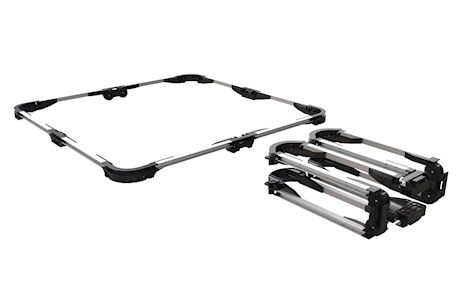

Sauermann DBM 620 frame assembly

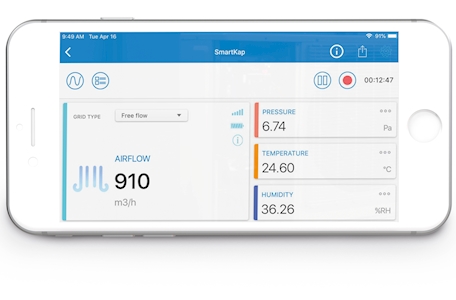

Sauermann DBM 620 Smartkap mobile App

Sauermann DBM 620 | Balometer

Available to purchase is the Sauermann DBM 620 balometer complete with 610 mm x 610 mm hood, case, instruction manuals, and calibration certificate. Note: The equipment requires a small type phone/ mobile device with the Sauermann SmartKap App installed to be used as an instrument display if data is not collected remotely via the Samsung Galaxy Tab supplied.

View instrument

Support documents

Download
Category
File type
Download

Download: Sauermann DBM 620 data sheet.pdf Sauermann DBM 620 data sheet
Category: Technical document
File type: Adobe Acrobat
: Download (2 MB)

Download: Sauermann DBM 620 quick start guide.pdf Sauermann DBM 620 quick start guide
Category: Technical document
File type: Adobe Acrobat
: Download (2 MB)

Download: Sauermann DBM 620 user manual.pdf Sauermann DBM 620 user manual
Category: Technical document
File type: Adobe Acrobat
: Download (2 MB)

Common customer questions & answers

QQuestion What is the size of the standard carry case?: AAnswer The size of the standard carry case for the DBM 620 instrument is 500 mm H x 320 mm D x 500 mm W

QQuestion What is the range of the Bluetooth signal?: AAnswer It depends on the smartphone or tablet being used but typically 30 m is the maximum range.

QQuestion Will the hood put a back pressure on the system being tested and this influence the results?: AAnswer The instrumentation can create a small back pressure on some systems, but as they are often used as proportional balancing tools this effect is the same on each part of the ventilation system being checked. Hence the overall balancing ratio's remain constant so any system back pressue has a negligible effect on the results.
