Testo 405i | Thermal anemometer

Contact BSRIA Instrumentation

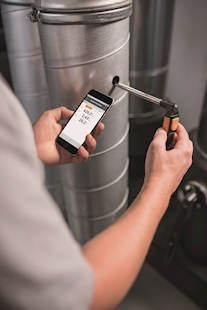

The Testo 405i smart probe thermal anemometer is an air velocity measuring device that links to smart phones and tablet devices to display and log measurement data. The product is suitable for measuring flow rates at grilles / diffusers and the smart probe App calculates the air volume. The probe comes complete with a telescopic shaft that is extendable up to 400 mm.

The Testo smart probes can be used individually or combined with other smart probes to create measuring solutions for most HVAC / HVAR applications.

Features

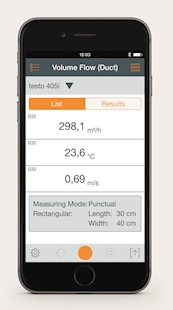

The Testo 405i works on smart devices with either Android or Apple operating systems. The App is a powerful and easy-to-use tool that allows you to remotely read measurements from up to six (6) smart devices. All measurement data is displayed as instrument readings, tables, or graphs. The measurements can be quickly saved as PDF or Excel files. The App creates custom reports which can be saved and / or shared by email.

Technical

Air velocity measuring range 0 to 30.0 m/s

Air velocity accuracy ± 1 digit  ± (0.05 m/s + 2.5 % of m.v.) (0 to 2 m/s), ± (0.15 m/s + 2.5 % of m.v.) (2 to 15 m/s)

Air velocity resolution  0.01 m/s

Temperature sensor type NTC

Temperature measuring range - 20 to + 60 °C

Temperature accuracy ± 0.5 °C

Temperature resolution 0.1 °C

Testo smart App system requirements  Mobile device requires iOS 8.3 or newer, or Android 4.3 or newer operating systems; Device also needs Bluetooth 4.0 capabilities

Warranty 2 years

Battery type  x3 AAA batteries

Typical battery life  15 hours

Storage temperature - 20 to + 60 °C

Dimensions 200 mm x 30 mm x 41 mm

Operating temperature -20 to +50 °C

Testo 410i | Vane anemometer
Testo 410i | Vane anemometer
Testo 410i air vane velocity meter, protection cap, batteries and calibration protocol
Testo Differential temperature and pressure smart probe set
Testo Differential temperature and pressure smart probe set
Testo differential temperature and pressure smart probe set comprising of two Testo 115i clamp type temperature probes, one Testo 510i differential pressure probe, smart case, batteries and calibration protocols
Testo HVAC/R ultimate smart probe set
Testo HVAC/R ultimate smart probe set
Testo HVAC/R smart probe set comprising of two 115i clamp thermometers, two 549i high-pressure probes, two 605i thermohygrometers, a 405i thermal anemometer, a 410i vane anemometer, a 510i differential pressure probe, a 805i infrared thermometer, a 915i flexible thermometer, smart case, batteries and calibration protocols
