TSI BlueSky | Air Quality Monitor

Air pollution - caused by air pollutants such as chemicals, smoke, dust or allergens - is an increasing concern in cities but can also be localised to a community, neighbourhood, or even a single building. Tiny airborne particulates (such as PM2.5) often emitted from vehicles are especially dangerous because they can penetrate deep into the lungs and cause a wide range of adverse health effects.  The TSI BlueSky air quality system is the ideal product for monitoring these and is able to transmit secure data 24/7 for remote viewing via the cloud.

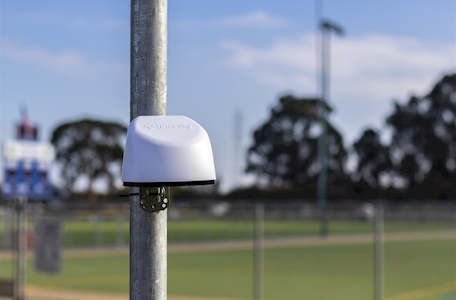

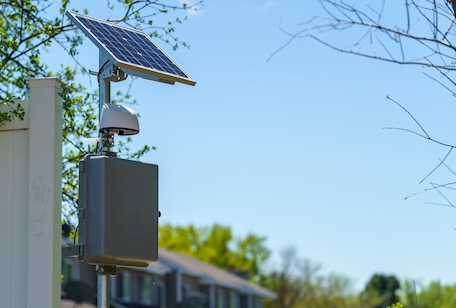

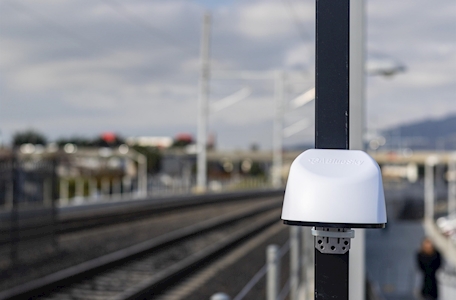

Specifically designed for the outdoor environment mounted on poles and fence lines they can be powered if required using an optional solar system that comes with a back-up battery pack for night time use as well as a power source on overcast days.

Features & Benefits

• Precision data – TSI factory-calibrated PM sensor with the option to program a custom calibration factor
• Real-time map of live data – ability to stream and display real-time data from the cloud using WiFi, without additional software or an App
• Unique laser-based light scattering particle sensors – simultaneously outputs PM1.0, PM2.5, PM4.0, PM10, temperature and humidity
• Designed for outdoor use – performs consistently in a wide range of humidity and temperatures, and protected from rain, insects and direct sunlight
• Barometric pressure measurement
• Pin-point levels of gas pollution such as CO₂ (Carbon Dioxide), NO₂ (Nitrogen Dioxide), CO (Carbon Monoxide), O₃ (Ozone) and SO₂ (Sulfur Dioxide)
• Three ways to download data – from TSI Link Software (.csv file), using the API data service or from the removable SD card
• Data buffering – internally logs data (up to 1 week at 15 min interval via on board memory) for data redundancy
• Easy and quick installation

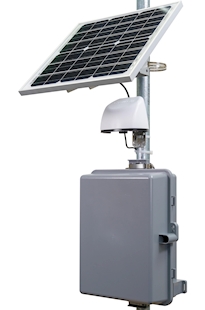

• Optional solar system, outdoor enclosure and cellular modem accessories available (excludes SIM)

What's included - all models

• 1 BlueSky air quality monitor
• 1 IP68 Rated 5V power supply
• 1 Mounting bracket
• 1 Mounting bracket screw
• x2 cable ties
• Micro-SD Card
• 1, 2 or 3 years premium subscription to TSI Link portal and API data services

Technical specification

All models

Size      152 mm x 140 mm x 114 mm       Weight      159 g       Power      <5 W (5 VDC @ 1 Amp)

PM sensor

Type    Light scattering single particle counter    Aerosol concentration range     0 to 1000 μg/m³     Measurements     PM1, PM2.5, PM4 and PM10      Measurement resolution     1 μg/m³       Counting efficiency     50 % at 0.3 μm and 98 % at 0.5 μm     Accuracy (compared to portable TSI Dustrak DRX)    ± 10 μg @ 0 to 100 μg, ± 10 % 100 to 1000 μg     Calibration      Pre-calibrated sensor (at time of manufacturer)

Temperature sensor

Range     -40 to +125 ^oC  (N.B,  Unit operating temperature -10 to + 60 ^oC)     Accuracy   ± 0.2 ^oC       Resolution 0.04 ^oC

Humidity sensor

Range   0 to 100 %rh       Accuracy     ±1.8 %rh      Resolution    0.04 %rh

The following specifications apply to the 8145 models only

Barometric pressure

Range   270 to 1185 hPa     Accuracy   ±4 hPa

Carbon Dioxide (CO₂)

Type   NDIR (non-dispersive infrared)     Range   0-10,000 ppm      Accuracy   ± 30 ppm + 3 % of reading     Resolution   1 ppm

Carbon Monoxide (CO)

Type   Electrochemical     Range   0-20 ppm      Accuracy   ± 0.150 ppm     Resolution   0.001 ppm

Ozone (O₃)

Type   Electrochemical     Range   0-5,000 ppb      Accuracy   ± 30 ppb     Resolution   1 ppb

Nitrogen Dioxide (NO₂)

Type   Electrochemical     Range   0-5,000 ppb      Accuracy   ± 30 ppb     Resolution   1 ppb

Sulfur Dioxide (SO₂)

Type   Electrochemical     Range   0-5,000 ppb      Accuracy   ± 50 ppb     Resolution   1 ppb

Software

All TSI AirAssure products are sold as bundles which includes 1, 2 or a 3 year subscription to the TSI Link portal as well as the API data services functionality.  Subsequent years access is then purchased on a per unit per service basis - please contact the BSRIA Sales Team for these prices.

Premium TSI Link access gives users access to functions such as graph and data export functionality as well as alert notifications & sensor diagnostics.  See data sheet for additional details.

The API data services subscription gives users access to TSI's OpenAPI documentation, OpenAPI REST specification, authentication credentials via OAuth2 (client credential flow), as well as consultation with the TSI cloud development team to review the steps required to access data via our REST API.

In addition to the above all TSI Link users can easily integrate air quality data in Microsoft Excel using the TSI Link Data Analyser add-in; an analytical tool developed for quick aggregation and processing of measurement data. Users can select a variety of data points to generate custom reports or leverage the 4 pre-arranged reports:

1. Time Charts - a time-based table and chart of selected measurements that enables users to see historical trends. Includes a statistics table, report header and device statistics.

2. Floorplan – users can get a visual representation of the airflow within a building. By uploading a graphic of a building's floorplan, devices are tagged to map air quality, which can be used for energy efficiency and reporting.

3. Thermal Comfort - supports your employees by economizing on the temperature and efficiency of air flow in your building. A time-based temperature-humidity scatter plot with a Too Cool / Too Warm thermal comfort curve developed by ASHRAE.

4. Time & Device Comparison – Verify your building’s ventilation, air quality, and thermal comfort performance between devices in your building.   You can also easily compare two different time periods to quantify performance between different operating conditions or configurations.
