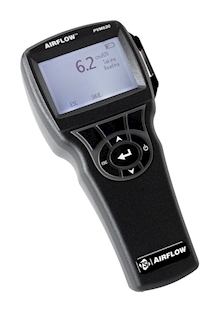

TSI / Airflow PVM620 | Micromanometer

Contact Instrument Solutions

Available to purchase is the TSI / Airflow PVM620 data logging manometer. it comes complete with case, batteries, software, USB cable, x2 1.2 m long rubber pressure hoses, static pressure tip, calibration certificate and user manual

The TSI Airflow PVM610 and PVM620 micromanometers are easy to use, hand held digital instruments for fast, accurate and reliable pressure measurements.

Ideal applications include HVAC commissioning and troubleshooting, testing and balancing, Pitot tube duct traverses, static pressure measurements and environmental air flow testing.

The PVM620 has the capability of calculating volumetric flow rate in ducts from the velocity and user input of duct size and shape. It can also record data points in duct traverse using a sampling function, data log with time and date stamp and programmable K factors.

Features

  • Measures differential and static pressure from - 3735 to + 3735 Pa
  • Calculate and display velocity when using an optional pitot tube (See separate section for a full range of pitot tubes)

Added features for the PVM620 model

  • Calculates volumetric flow rate in duct from velocity and user-input duct size and shape
  • Records data points in duct traverse using sampling function
  • Data logging with time and date stamp
  • Includes LogDat2™ downloading software
  • Programmable K factors

Technical

PVM610 and PVM620 instruments:

Range - 3735 to + 3735 Pa

Accuracy ± 1 % of reading ± 1 Pa

Resolution 0.1 Pa

Size 8.4 cm x 17.8 cm x 4.4 cm

Weight 0.27 Kg

Power Four AA-size batteries

PVM620 instrument only:

Duct size dimensions 1 to 635 cm in increments of 0.1 cm

Volumetric flow rate range Actual range is a function of velocity, pressure, duct size, and K factor

Memory 12,700 + samples and 100 test IDs

Logging interval From 1 second to I hour

Time constant User selectable

Power supply Four AA-size batteries and optional PSU - See accessories

TSI / Airflow PVM610 | Micromanometer
TSI / Airflow PVM610 | Micromanometer
Available to purchase is the TSI / Airflow PVM610 manometer which comes complete with case, batteries, calibration certificate and user manual
TSI training video - How to set an instrument up do a duct traverse
TSI training video - How to perform a duct traverse
