The Kimo MP110, MP111, MP112 and MP115 are user friendly entry level manometers which have a variety of pressure ranges from ± 1000 Pa to ± 200 kPa. Ideal for use measuring the differential pressure drop across filter banks and HVAC duct pressures.
All models are supplied with 2 x 1 m of tube Ø 4 mm x 7 mm (silicone tube with MP110 and MP111, reinforced tube the MP112 and MP115 models), stainless steel pressure tube Ø 6 mm x length 100 mm, battery, user manual, manufacturers calibration certificate, transport case and tube safety connectors (MP112 and MP115 models only).
Features
- Manual auto zero
- Hold function
- Display min/max. values
- Configurable auto shut-off
- Backlight display
- IP54 ABS housing
Technical
All meter functions : Pressure measurement, pressure units choice, manual auto zero, hold function, display minimum/maximum values and configurable auto shut-off time.
NOTE : If velocity measurements are required using a Pitot tube BSRIA Instrument Solutions would recommend the use of alternative product with a m/s function such as the Kimo MP120 model.

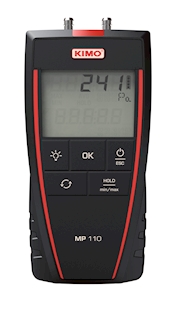

MP110
Measuring units, Pa, mmH2O and inWg Pressure range, ± 1000 Pa Pressure accuracy, ± 0.5 % of reading, ± 2 Pa Pressure resolution, 1 Pa

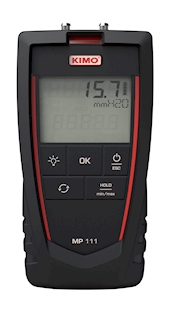

MP111
Measuring units, kPa, mmH2O, inWg, mbar and mmHg Pressure range, ± 10 kPa (1000 mmH2O) Pressure accuracy, ± 0.5 % of reading, ± 2 mmH2O Pressure resolution, 0.1 mmH2O
MP112
Measuring units, kPa, inWg, mbar, mmHg, PSI and bar Pressure range, ± 200 kPa (2000 mbar) Pressure accuracy, ± 0.5 % of reading, ± 2 mbar Pressure resolution, 1 mbar

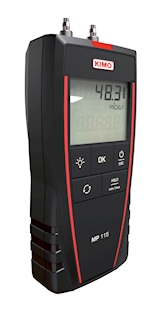

MP115
Measuring units, kPa, inWg, mbar, mmHg and PSI Pressure range, ± 50 kPa (500 mbar) Pressure accuracy, ± 0.5 % of reading, ± 0.5 mbar Pressure resolution, 0.1 mbar
