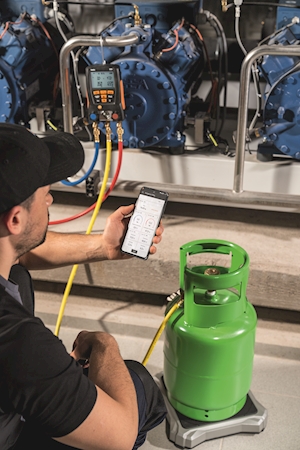

The Testo 560i wireless refrigerant scale, together with the intelligent valve, revolutionises the charging of refrigeration systems and heat pumps. Because with the combination of Testo 560i with valve, a digital manifold from Testo and/or the Testo Smart App, you charge refrigeration systems and heat pumps automatically and thus more quickly and precisely than ever before. You can choose from three automatic programs according to target superheat, subcooling or refrigerant weight. Simply select the charging program in the Testo manifold or Testo Smart App, enter the target value and the testo 560i refrigerant scale with intelligent valve does the rest for you. Your benefits: Time saved to complete other tasks as well as error-free and precise charging of the system.

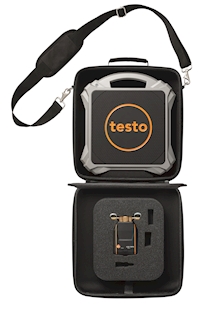

The scale and valve automatically connect via Bluetooth to the manifold and the App on your smartphone or tablet. This gives you flexibility even in confined environments. Thanks to the compact and robust housing, the low weight and the practical carrying handle, the scale is particularly handy.

Features

  • Free to download App
  • Automatic and precise refrigerant charging according to target superheat, subcooling and weight thanks to the intelligent valve
  • Compatible with digital manifolds testo 557s/550s/550i and testo 557/550

Technical specifications

560i scales:-

Measuring range      0.00 to 100.00 kg

Resolution      0.01 kg

Battery type       x4 AA batteries

Battery life       70 hours typical

Storage temperature       -10 to +50 °C

Operating temperature       -10 to +50 °C

Dimensions       310 x 287 x 58 mm

Weight      4.36 kg including batteries and case

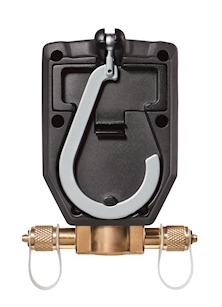

Intelligent valve:-

Maximum working pressure     35 bar

Battery type       9 V alkaline

Battery life       60 hours typical (approximately 3000 valve operations)

Storage temperature       -10 to +50 °C

Operating temperature       -10 to +50 °C

Dimensions       95 x 119 x 47 mm

Weight      0.57 kg including battery
