Testo 340 | Combustion analyser

Contact BSRIA Instrumentation

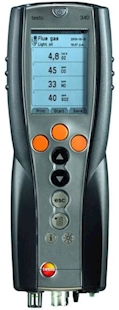

The Testo 340 emissions flue gas analyser is the ideal tool for service, maintenance and inspection of many industrial and large commercial combustion applications including but not limited to; industrial burner and boiler systems, high heat industrial process combustion, stationary engines (including diesel), CHP systems, and gas turbine applications for heat / power. It has a robust housing with a high level of impact protection that enables use in challenging daily site working conditions. The units also have a data logging capability with an optional output facility via Bluetooth.

The Testo 340 is available in several kit configurations including a basic combustion kit (including O2, CO and NO cells), a NO2 / NOx kit (including O2, CO, NO and NO2 cells) and an SO2 kit (including O2, CO, NO and SO2 cells). For customers with a specific sensor configuration not covered by these kits then a suitable bespoke kit can be configured, please speak to a member of the BIS sales team to discuss your requirements.

Features

Overview:

  • TÜV approval / EN standard. Accuracy approved for O2, CO, NO, NOlow, °C, pressure to EN 50379 standard, Part 2
  • Automatic flow-controlled gas pump
  • Modular gas sampling probes
  • Internal data logging
  • Optional data transfer and real-time-analyzer-control via Bluetooth® module and software easyEmission
  • 18 fuels stored in the instrument as standard, more are user-specifically configurable with easyEmission
  • Infrared printing option so you can print records (flash Mode) to Testo infrared printer
  • Up to 4-gas sensors to use and measure simultaneously
  • Designed for simple, fast operation and constructed for demanding daily rugged use
  • Integrated pressure sensor measures draft or differential pressure and simultaneously measure exhaust gas and flow velocity for flow
  • Automatic Sensor Protections keeps your analyzer working longer
  • Field-replaceable pre-calibrated sensors means zero downtime

Basic combustion kit:

  • Testo 340 analyser with O2, CO, NO cells and Bluetooth module fitted
  • Testo 340 carry case, carry strap and power supply

NO2 / NOx kit:

  • Testo 340 analyser with O2, CO, NO, NO2 cells and Bluetooth module fitted
  • Testo 340 carry case, carry strap and power supply

SO2 kit:

  • Testo 340 analyser with O2, CO, NO, SO2 cells and Bluetooth module fitted
  • Testo 340 carry case, carry strap and power supply

Technical

As the Testo 340 instrument is fully configurable please refer to the product data sheet for the various options. If you require any assistance or technical help please call the Instrument Solutions team on 01344 459314 or e-mail instruments@bsria.co.uk

All Testo 340 units must be fitted with a minimum of two gas cells which must include an O2 unit.

Testo 350 | Combustion analyser
Testo 350 | Combustion analyser
Available to buy or hire this analyser can come with 6 gas cells and is suited to long term monitoring in industrial applications
