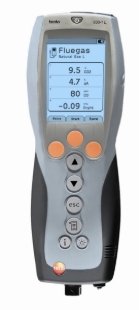

Testo 330-1 LL advanced kit | Combustion analyser

Contact Instrument Solutions

The Testo 330-1LL flue gas analyser is the ideal tool for today's busy professional combustion engineer as it is fitted with long-life gas sensors. Supplied as standard kit with rechargeable battery, power supply / recharger, flue gas probe (180 mm long standard) and carry case. Optional printer and software available.


In the Testo 330-1 LL, the follow-on costs for the user are greatly reduced by the extended sensor life of up to 6 years for O2 and CO. At least one sensor replacement is avoided during the typical duration of use of the instrument. In addition to this, Testo gives a warranty of 5 years on the complete instrument (testo 330-1 LL incl. O2 and CO sensors as well as the probe). At the press of a button, the instrument diagnosis provides information on qualitiative status, e.g. the filling level of the condensate trap, or of wearing parts such as the status of the gas sensors. The modular probes, such as those for differential temperature and pressure as well as for flue gas, are automatically recognized by the measuring instrument. The measurement results thus immediately appear in the menu.

330 features include:

  • Instrument diagnosis
  • Temperature measurement of ambient temperature with flow/return available with additional probes
  • Ambient CO and CO2 measurements with optional probes
  • Detects gas leaks using gas leak detection probe
  • Measurement for gas pressure
  • Gas/oil throughput
  • 200 measurement data sets memory function
  • IRDA interface for data transfer to PDA/Notebook
  • Tested to EN 50379-2 for O2, °C, hPa
  • Tested to EN 50379-3 for CO
  • USB interface for data transfer to PC
  • Data management with easyheat software (PC) and easyheat.mobile (Pocket PC) avaialbale as options.


Memory       200 samples

Display       Graphics display 160 x 240 pixel size screen

Operating temperature     - 5 to + 45 °C

Weight     600 g

Dimensions 270 mm x 90 mm x 65 mm

Flue gas probe:

Thermocouple Type K

Measuring range - 40 to + 1200 °C

Resolution 0.1 °C (- 40 to 9,999 °C), 1 °C (remaining range)

Gas cell type CO:

Measuring range 0 to 4000 ppm

Accuracy Accuracy ± 20 ppm (0 to 400 ppm), ± 5 % of mv (401 to 1000 ppm), ± 10 % of mv (1001 to 4000 ppm)

Resolution 1 ppm

Response time Approximately 35 s

Gas cell type O2:

Measuring range 0 to 21 Vol. %

Accuracy ± 0.2 Vol. %

Resolution 0.1 Vol. %

Support documents

  • Download
  • Category
  • File type
  • Download
Testo 330 series user manual.pdf Testo 330 series user manual
Technical document
File type
Adobe Acrobat
Download (630 KB)
