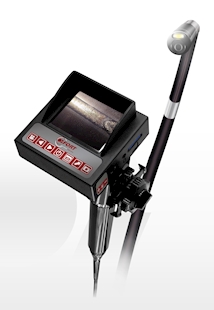

The Visio Prime Inspector video endoscope is a lightweight product designed where portability is the key. All Instrument Solutions Hire instruments have 3 m insertion tubes with the 4 way articulation and a 6 mm insertion tube system as standard.
Features
The battery-powered unit combines the latest hybrid-fibre optic technology with high power LED illumination to deliver huge levels of light, with an “easy-focus” lens, ensuring you have a perfect image in even the darkest space – and you can get the image you need without resorting to a multitude of tip adapters.
The special 4-layer insertion-tube construction with a tungsten outer braid ensures that wear resistance is high and the unit is robust – minimising the risk of damage. The handset incorporates a digital video and still capture facility, storing onto standard digital media.
Applications
- Pipeline construction / Weld inspection
- Wind Turbine applications such as gearbox inspections
- Power Generation – Turbine Inspection
- Automotive Industry – Motors, gears and chassis
- General cavity inspections
- Foreign object retrieval
Features overview
- 3 m insertion length (Hire models)
- 6 mm working diameter
- 120° probe articulation
- Hire models come as standard with the 70° and 90° side view adaptors
- Hire models come as standard with the magnetic and hook adaptors
- Records direct to a JPEG image
- Operation temperature -10°C to +60°C
- Range of view Focus 3 mm (0.12”) to ∞ (infinity variable with the “Easy Focus” optic system)
- Zoom Digital 1.5 x
- Waterproof Insertion tube fully immersible and waterproof
