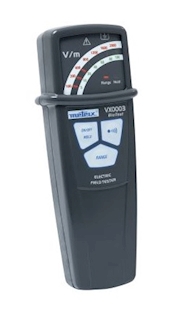

Metrix VX0003

Contact Instrument Solutions


The Metrix VX0003 Bio-Test low frequency electric field tester is a simple to use, economical and reliable instrument. It is equiped with an internal antenna that can measure from 10 Hz to 3 kHz and it will instantly indicate the level of electromagnetic pollution. The instrument is designed for both professional and private use, including electricians, PAT testers and those working in the housing, commercial property and industry sectors. It can be used for monitoring many sources of electromagnetic pollution including; electrical power distribution inside housing and offices; surge protector power bars and electrical cables; computers, printers and faxes; lighting; high-voltage power lines, transformers and railway power lines / tracks.


  • Equipped with an internal antenna capable of measurements from 10 Hz to 3 kHz
  • Hand-held, designed for stand-alone use and an audio signal gives immediate identification of field level
  • Representative field testing which takes the users presence into account
  • Traditional method that measures fields referenced to earth
  • Dual scale LED display of electric field intensity
  • Instant audible identification of field levels
  • Tests electric field intensity in accordance with standards including IEEE C95.6-2002, 1999/519/CE, EN IEC 62493, EN 50366 and IEC 62233
  • Supplied with a socket tester (phase position and presence of earth), 5 m earth cable, belt bag case and detailed user manual
  • 2-year warrenty included


Radiation type Electric field

Accuracy ± 10 %

Probe Internal antenna

Power source 9 V battery (included)

Battery life 60 to 80 hours

Dimensions 63.6 mm x 40 mm x 163 mm

Weight 200 g (with battery)

Maximum frequency 3 kHz

Minimum frequency 10 Hz

Sensitivity ranges 5 V/m to 100 V/m and 100 V/m to 2,000 V/m

Protection IP65

Safety Single earth terminal

Support documents

  • Download
  • Category
  • File type
  • Download
Metrix VX0003 data sheet.pdf Metrix VX0003 data sheet
Technical document
File type
Adobe Acrobat
Download (1 MB)
