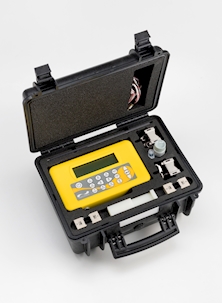

The Portaflow PF222 and PF333 instruments are transit time ultrasonic flow meters designed to work with clamp-on transducers. The PF222 is the basic model that measures flow only, whilst the PF333 measures can measure both flow and thermal / heat energy (version dependant) using additional clamp on Pt100 temperature sensors along with software designed to comply with EN 1424 section 6.
The instruments work with a range of different transducer sets depending on the unit and the application. Optional high temperature sensors are also available on the PF333 model. Sensor mounting clamps are provided with each instrument to ensure correct mounting on any sized pipe in either diagonal or reflex modes.
Features
- Flow range – 0.1 m/sec to 20 m/sec bi-directional
- Accuracy : Pipe ID 13 to 75 mm ± 3.0 % of flow reading for flow rates > 0.2 m/s. For pipe ID's > 75 mm ± 0.5 to 2.0 % of flow reading depending on pipe size and flow rates > 0.2 m/s.
- Display – 64 x 240 pixels graphic display
- Programming via 16 key control panel
- Battery or mains for continuous operation
- Rechargeable battery
- Battery life – 14 hours typical from fully charged
- 100,000,000 point data logger with download via USB to csv file (PF333 model only)
- Power – 110 – 240 VAC +/- 10 % supply via PSU
- Pulse and 4 to 20 mA outputs

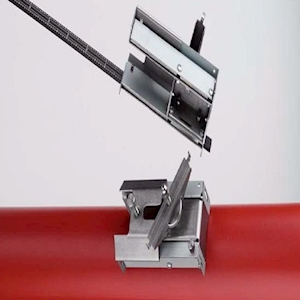

- Magnetic guiderails available
- IP 68 rated transducers available
- 4 user selectable languages - English, German French and Spanish
- CE approved
The PF222 and PF333 models are designed with ‘ease of use’ in mind. An interactive QuickStart menu, which simplifies system installation at any suitable location, together with minimal set-up requirements, means that the system can be installed and brought into service very quickly.

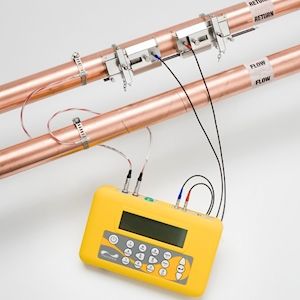

The flow sensors, or transducers, connected to the instruments are attached to the outside of the pipe being monitored and provide totally non-invasive flow measurement without disturbing the existing plant equipment or process operation.
The maximum permissible pipe outside diameter depends on the type of ultrasonic transducer in use –
- Type ‘A’ transducer : usable with pipes in the range 13 mm to 115 mm
- Type ‘B’ transducer : usable with pipes in the range 50 mm to 1000 mm PF222 model & 50 mm to 2000 mm PF333 model,
- Transducer operating temperature : Standard, -20 to +135 oC and high, 20 to + 200 oC (Note: The high temperature type A and B sized transducers are also available for use on the PF333 model)
INSTRUMENT SOLUTIONS RENTAL MODELS
Available to hire are the Portaflow 333 meters as either a flow only variant, or the flow + energy (includes temperature probes) version both complete with magnetic guiderails. Please call the hire team on 01344 459314 or e-mail hire@bsria.co.uk for the weekly rental rates.
SALES MODELS
There are 48 different versions of this product available to purchase as follows:-
Portaflow PF222 ultrasonic flow meters (without data logging)
Model Pipe size Temp range Part Number
PF222 A 13-115 mm Standard 770-6004
PF222 A magnetic guiderails 13-115 mm Standard 770-6004M
PF222 A IP68 13-115 mm Standard 770-6004IP68
PF222 A IP68 magnetic guiderails 13-115 mm Standard 770-6004IP86M
PF222 B 50-1000 mm Standard 770-6006
PF222 B magnetic guiderails 50-1000 mm Standard 770-6006M
PF222 B IP68 50-1000 mm Standard 770-6006IP68
PF222 B IP68 magnetic guiderails 50-1000 mm Standard 770-6006IP86M
PF222 AB 13-1000 mm Standard 770-6008
PF222 AB magnetic guiderails 13-1000 mm Standard 770-6008M
PF222 AB IP68 13-1000 mm Standard 770-6008IP68
PF222 AB IP68 magnetic guiderails 13-1000 mm Standard 770-6008IP86M
Portaflow PF333 ultrasonic flow meters (with data logging)
Model Pipe size Temp range Part Number
PF333 A 13-115 mm Standard 780-6014
PF333 A magnetic guiderails 13-115 mm Standard 780-6014M
PF333 A HT 13-115 mm High 780-6014HT
PF333 A HT magnetic guiderails 13-115 mm High 780-6014HTM
PF333 A IP68 13-115 mm Standard 780-6014IP68
PF333 A IP68 magnetic guiderails 13-115 mm Standard 780-6014IP86M
PF333 B 50-2000 mm Standard 780-6016
PF333 B magnetic guiderails 50-2000 mm Standard 780-6016M
PF333 B HT 50-2000 mm High 780-6016HT
PF333 B HT magnetic guiderails 50-2000 mm High 780-6016HTM
PF333 B IP68 50-2000 mm Standard 780-6016IP68
PF333 B IP68 magnetic guiderails 50-2000 mm Standard 780-6016IP86M
PF333 AB 13-2000 mm Standard 780-6018
PF333 AB magnetic guiderails 13-2000 mm Standard 780-6018M
PF333 AB HT 13-2000 mm High 780-6018HT
PF333 AB HT magnetic guiderails 13-2000 mm High 780-6018HTM *** This version is available to hire ***
PF333 AB IP68 13-2000 mm Standard 780-6018IP68
PF333 AB IP68 magnetic guiderails 13-2000 mm Standard 780-6018IP86M
Portaflow PF333 ultrasonic flow / heat meters (with data logging)
Model Pipe size Temp range Part Number
PF333 HM A 13-115 mm Standard 780-6004
PF333 HM A magnetic guiderails 13-115 mm Standard 780-6004M
PF333 HM A HT 13-115 mm High 780-6004HT
PF333 HM A HT magnetic guiderails 13-115 mm High 780-6004HTM
PF333 HM A IP68 13-115 mm Standard 780-6004IP68
PF333 HM A IP68 magnetic guiderails 13-115 mm Standard 780-6004IP86M
PF333 HM B 50-2000 mm Standard 780-6006
PF333 HM B magnetic guiderails 50-2000 mm Standard 780-6006M
PF333 HM B HT 50-2000 mm High 780-6006HT
PF333 HM B HT magnetic guiderails 50-2000 mm High 780-6006HTM
PF333 HM B IP68 50-2000 mm Standard 780-6006IP68
PF333 HM B IP68 magnetic guiderails 50-2000 mm Standard 780-6006IP86M
PF333 HM AB 13-2000 mm Standard 780-6008
PF333 HM AB magnetic guiderails 13-2000 mm Standard 780-6008M
PF333 HM AB HT 13-2000 mm High 780-6008HT
PF333 HM AB HT magnetic guiderails 13-2000 mm High 780-6008HTM *** This version is available to hire ***
PF333 HM AB IP68 13-2000 mm Standard 780-6008IP68
PF333 HM AB IP68 magnetic guiderails 13-2000 mm Standard 780-6008IP86M
